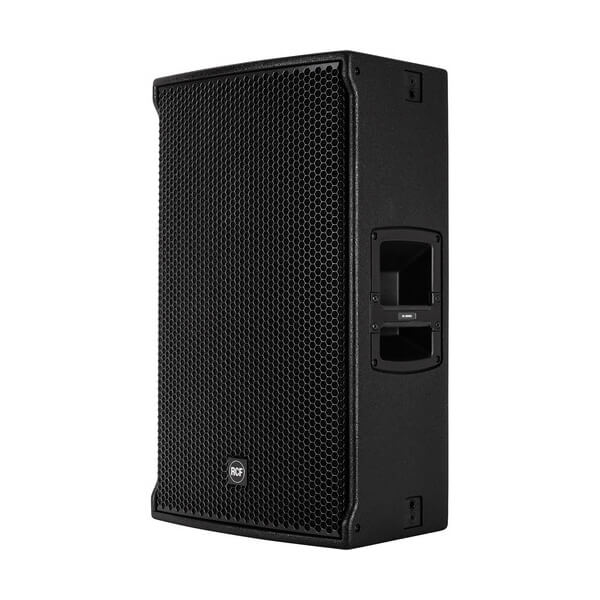

RCF NX 45-A 15” 1400W Active Loudspeaker

Features:

  • 1400 W 2-way class-D amplifier
  •  133 dB SPL Max
  •  45 – 20000 Hz Frequency Range
  •  90° x 50° constant directivity coverage
  •  15″ neodymium woofer, 3.5″ voice coil
  •  Horn loaded 4.0”neodymium c. driver
  •  Multiple rigging points

The NX 45-A is an active speaker specifically designed to be the everyday tool for rental companies and professional musicians. It’s one of the most flexible speaker for deploying high-power and pristine sound as a stand-alone FOH system or as a satellite (with subwoofer) but either as a stage monitor or a front, down or side fill speaker.

Specifications

  • FREQUENCY RESPONSE : 45 Hz ÷ 20000 Hz
  • MAX SPL @ 1M : 133 dB
  • HORIZONTAL COVERAGE ANGLE : 90°
  • VERTICAL COVERAGE ANGLE : 50°

Transducers

  • COMPRESSION DRIVER : 1.4” neo, 4.0” v.c
  • WOOFER : 15” neo, 3.5” v.c

Input/Output section

  • INPUT SIGNAL : bal/unbal
  • INPUT CONNECTORS : XLR, Jack
  • OUTPUT CONNECTORS : XLR
  • INPUT SENSITIVITY : -2 dBu/+4 dBu
  • MIC. INPUT SENSITIVITY : -32 dBu

Processor section

  • CROSSOVER FREQUENCIES : 650 Hz
  • PROTECTIONS : Thermal, RMS
  • LIMITER : Soft Limiter
  • CONTROLS : Volume, Boost, Mic/Line

Power section

  • TOTAL POWER : 1400 W Peak, 700 W RMS
  • HIGH FREQUENCIES : 400 W Peak, 200 W RMS
  • LOW FREQUENCIES : 1000 W Peak, 500 W RMS
  • COOLING : Convection
  • CONNECTIONS : Powercon IN/OUT

Standard compliance

  • CE MARKING : Yes

Physical specifications

  • CABINET/CASE MATERIAL : Baltic birch plywood
  • HARDWARE : 5 x M10, 4 x quick lock
  • HANDLES : 2 Side
  • POLE MOUNT/CAP : Yes
  • GRILLE : Steel
  • COLOR : Black

Size

  • HEIGHT : 707 mm / 27.83 inches
  • WIDTH : 418 mm / 16.46 inches
  • DEPTH : 402 mm / 15.83 inches
  • WEIGHT : 24 kg / 52.91 lbs
